/// THE GLOBAL LEADER – CROSS BELT PRODUCTS!
/// HOLDS UP TO 8 DETECTORS
/// DESIGNED TO WORK WITH SOURCE, NEUTRON GENERATOR OR BOTH
/// XRSciences

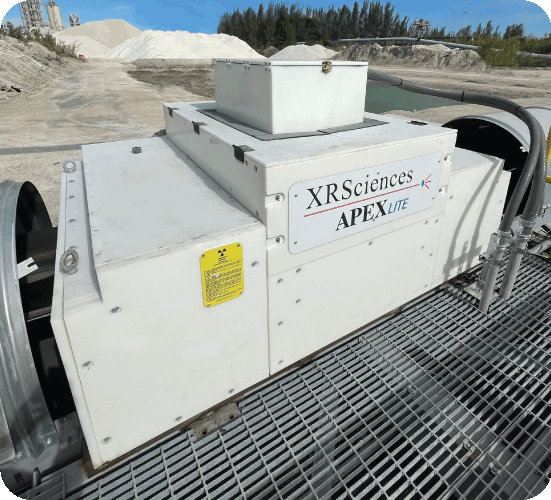

APEX LITE ANALYZER
The new APEX Model Series PGNAA (Prompt Gamma Neutron Activation Analysis) Cross Belt Analyzer is developed at XRSciences LLC by Dr. Tom Atwell – recognized as the “father of PGNAA analyzers”. The APEX Model Series leverages the APEX system design, but with reduced size and weight requirements. The APEX LITE delivers accurate and precise elemental measurements, is very stable, and delivers this with the lowest operational cost. Designed for Cement, Coal and Minerals analysis.
LOWEST OPERATION COST.
HIGHEST VALUE (PERFORMANCE/TOTAL-COST) .
APPLICATIONS
/// Stockpile Control and Management
/// Raw Mix Control
/// Raw Material Sorting
UNIQUE ASPECTS
/// Lowest operation cost in the market
/// Lightest analyzer in the market
/// Enhanced S/N with the new APEX Electronics
/// Very accurate and stable results. Designed to run for months or years with few if any adjustments/corrections.
UPGRADABLE
/// Designed to handle up to 8 detectors – so performance can be upgraded at any time.
/// Designed to work with conventional sources or electronic source without housing modifications (this is a future upgrade).
FEATURES
/// Mounts on existing conveyor belts
/// Designed for optimal performance and lowest operational costs
/// Enhanced S/N with the new APEX Electronics
/// Very accurate and stable results. Designed to run for months or years with few if any adjustments/corrections.
/// Oxides Reported: CaO, SiO2, Al2O3, Fe2O3, MgO, SO3, Cl, K2O, Na2O, LOI
/// Quality Control Parameters Computed: LSF, SM, AM, Eq. Alkali, C3S, C3A, C2S, C2F, C4AF
/// Works with 3rd party process control or XRSciences APEX “Control” software.
“FATHER of THE CROSS BELT ANALYZER”
